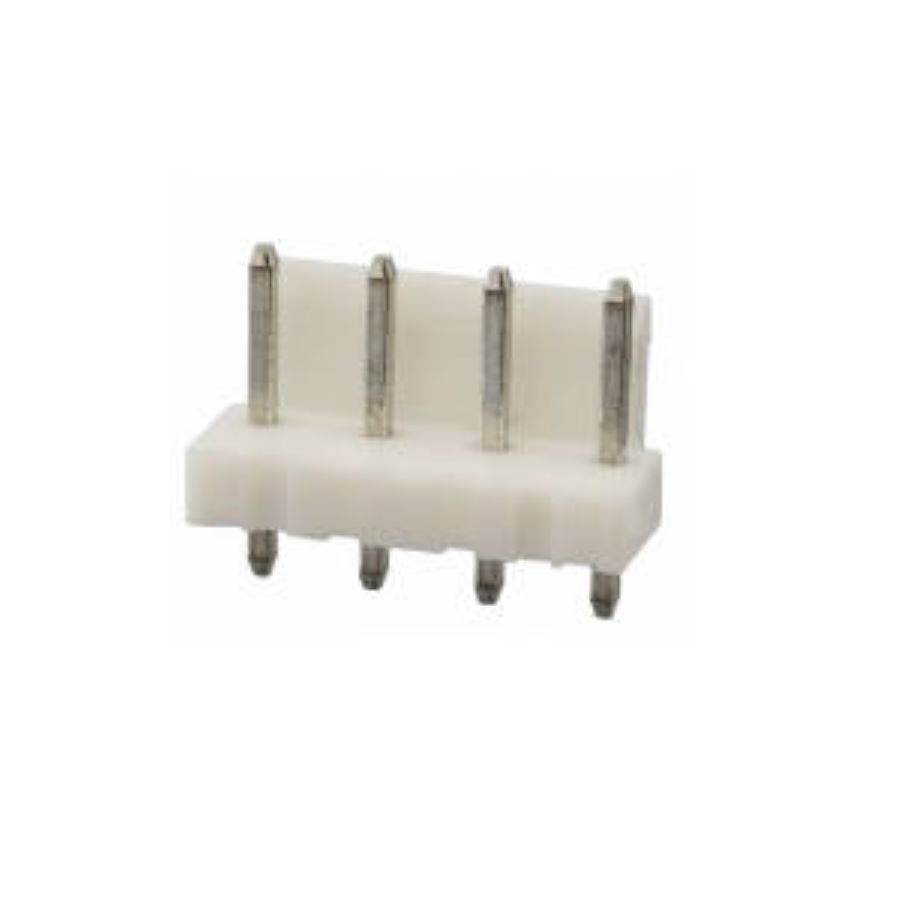

1744037-4
Manufacturer:
TE Connectivity
Mfr.Part #:
1744037-4
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:5.08 mm
| Parameter | Value |
|---|---|
| Length | 17.84 mm |
| Width | 8.2042 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Height | 10.89914 mm |
| Material | Nylon, Brass |
| Packaging | Bulk |
| Depth | 8.52 mm |
| Lead Free | Not Applicable |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Pitch | 5.08 mm |
| Current Rating | 8 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Connector System | Wire-to-Board |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 8 A |
| Housing Color | Natural |
| Plating | Tin |
| Contact Mating Length | 7.6962 mm |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 63 µm |
| Plating Thickness | 120 µm |
| Number of Power Positions | 4 |
| Mating Post Length | 7.7 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Contact Retention | Without |
| Termination Post Length | 3.7 mm |
Stock: 2615
Distributors
pcbx
pcbxUnit Price$0.13764
Ext.Price$0.13764
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13764 | $0.13764 |
| 10 | $0.13166 | $1.31660 |
